laser industrial automatic pocket welting sewing machine for trouses

FOB Reference Price:Get Latest Price
US $5,856-6,156 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SOKIA
Model Number:
SK-P21
Stitch Formation:
Chain Stitch
Mechanical Configuration:
Flat-Bed
Max. Sewing Speed:
2700rpm
Max. Sewing Thickness:
20mm
Stitch Length:
0.1-12.7mm
Power:
750W
Overall Dimensions:
1100*1550*1050 MM
Feed Mechanism:
Multiple
Certification:
ISO9001 CE
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
White
Keywords:
Electric pattern programmable Sewing Machine
Weight:
145 Kg
Needle:
Singer Needle
Application:
Clothing shoes handbag ............
Supply Ability
Supply Ability:
2000 Set/Sets per Year
Packaging & Delivery
Packaging Details
European wooden case packing
Port
shenzhen,guanzhou
Lead Time :
3--7 days
Video Description

 -2_

 Parameter of Machine:

Model:

SK-P21

G.W

205kg

Power

AC 110V /220V / 380V

Size

1100*1550*1000mm

Stitching area(MAX)

250x200mm

Speed scope

200-2000rpm for 10 sections

Stitch length

0.1-12.7mm

Max Speed

2700rpm

Needle

DP×10#--17#--25#

Shuttle Hook

Oscillating shuttle Hook

Presser foot type

Pneumatic

Memory

RAM/USB/SD

Max.number of stitche

8,000per pattern

Propportional sacle  function

X.Y 10-200%(min0.1%)

Outer pressure foot  lifting range

32mm

Laser

high powerful laser cuttting installment/  5 years warranty

Production efficiency

1200--1500 pcs pockets/ 8 hours

Motor

Diect drive motor 750 W

 Application:

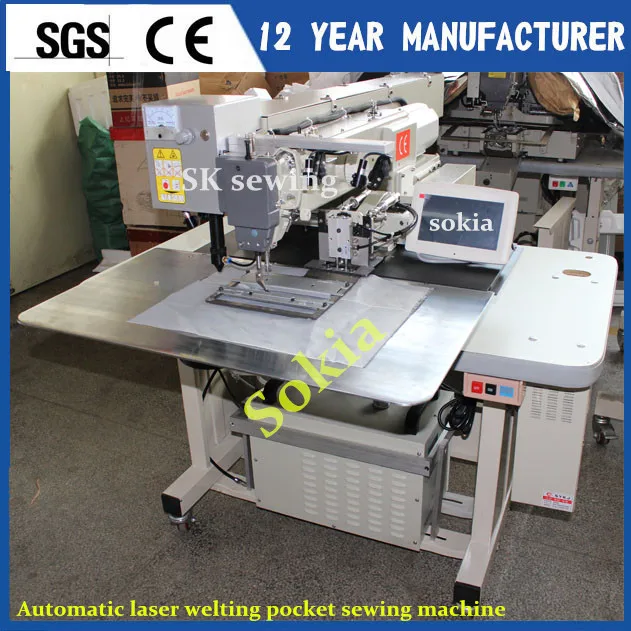

The auto laster pocket welting machine is a universal automatic welt pocket unit. This unit can sew all kinds of common welt pockets: straight, slanted, with or without flap. Sewing with zipper can be integrated without any problem. laster pocket welting machine sews at a high speed. Clamp transfer and all trimming systems of the sewing unit have their own drive; clamp transfer and corner cutting are controlled fully automatically by step motors. The center knife is driven separately by an electric motor.

 Y_

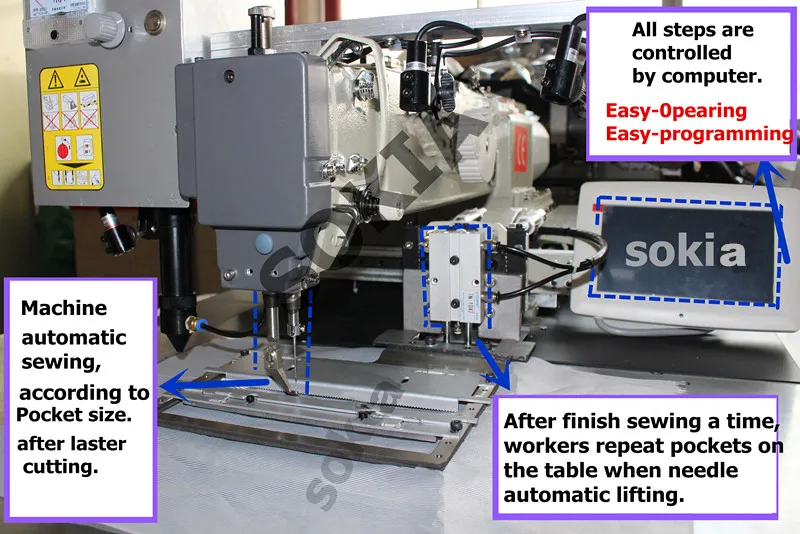

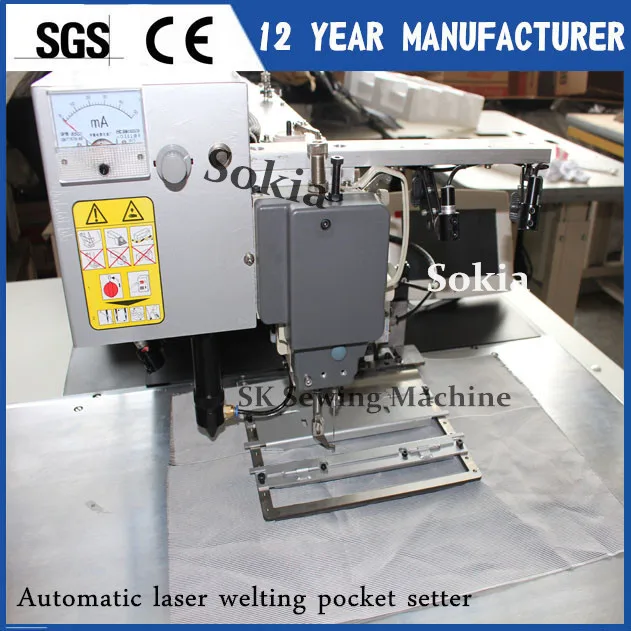

Details of laser welting pocket setter:

-3_Y _-2_2_

-3_



1Japan needles and direct driver motor with Strong penetration.

2.Imported guide rail has good quality ,working life more than ten years.



3.Clamp installment making sewing easy and high efficiency for new workers.

4.The secondary gripper device has a function of solving the problem of floating thread.



5. The presser foot with function of lifting up and down .adjusted High-Low level to sewing smoothly.

6.English computer controller & big LCD display easy operation, Large memory.



SK Sewing Your good Partner, Too .



.jpg



Packing



packing2

RFQ:

Q1: Are you a trading company or a manufacture?

A1: We own a factory ourselves, and we can assure the quality we manufactured.brand: SOKIA

Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with good  after service. Also we have two

year warranty of the spare parts, free of charge.

Q3: Why choose Dongguan SokiaSewing Machines ?

A3: Our products with more than 35% energy saving. Cost effective environmentally. Excellent           pre-sale and after-sale services.
